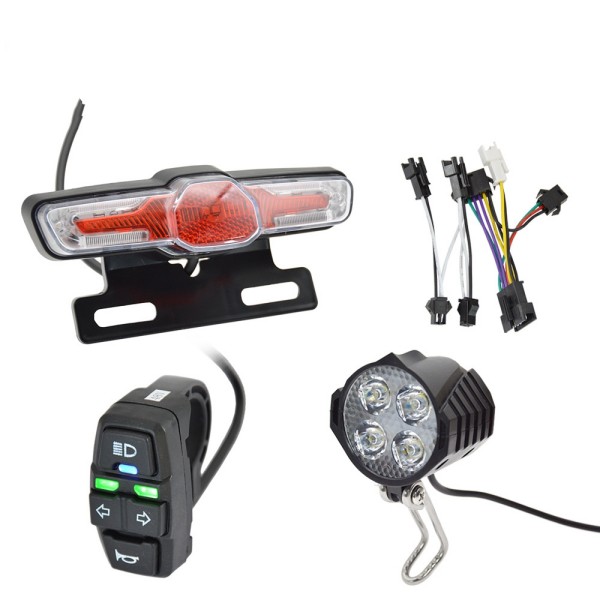

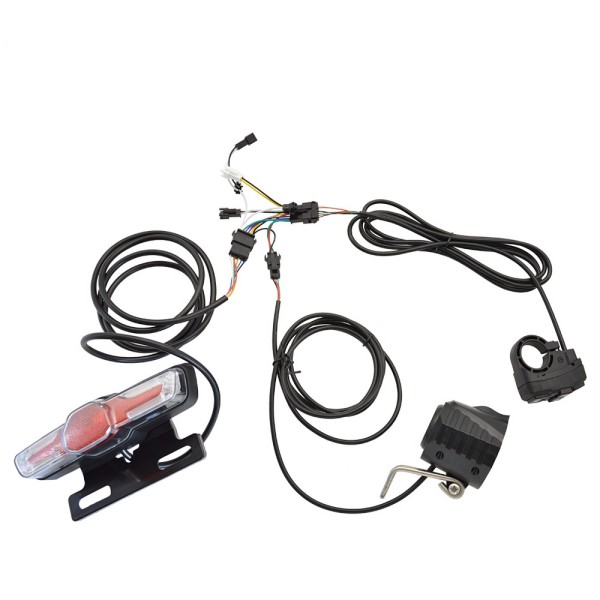

lights set

Headlight

Model: KSHL-1

Applicable voltage: 60V / 48V / 36V / 12V without speaker

Low beam current: 48V/190mA, 36V/250mA

Power: 9W

Function: low beam, horn

Light brightness: 650 LM

Speaker volume: 65-100 dB

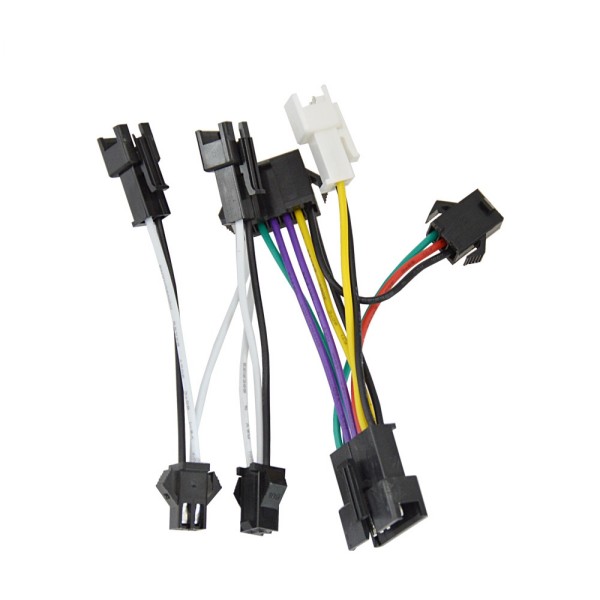

Outgoing wire: 3PINS

Cable length: about 1.5M

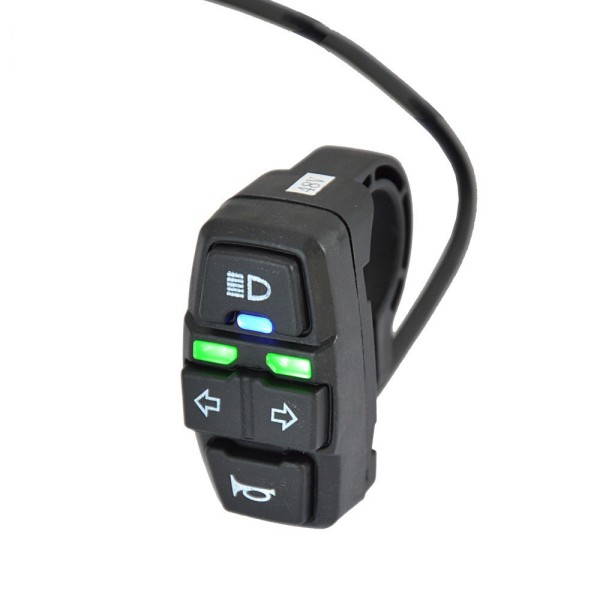

Switch parameters:

Code: KSWT-1

1. Net weight of switch: 92g

2. Shell material: plastic

Product size: 26*53*61mm

Cable length: about 1.5M

Taillight

Model: KSRL-1

Applicable voltage: 48V / 36V

Rear lamp current: 48V/40mA, 36V/30mA

Power: 2W

Function: rear light, brake light, turn signal

Light brightness: 30 LM

Outgoing wire: 6PINS

Cable length: about 1.5M

Installation method: rear shelf of frame
