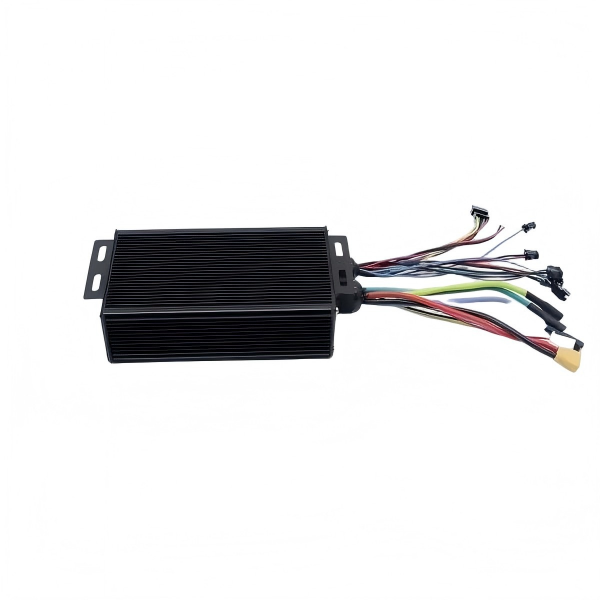

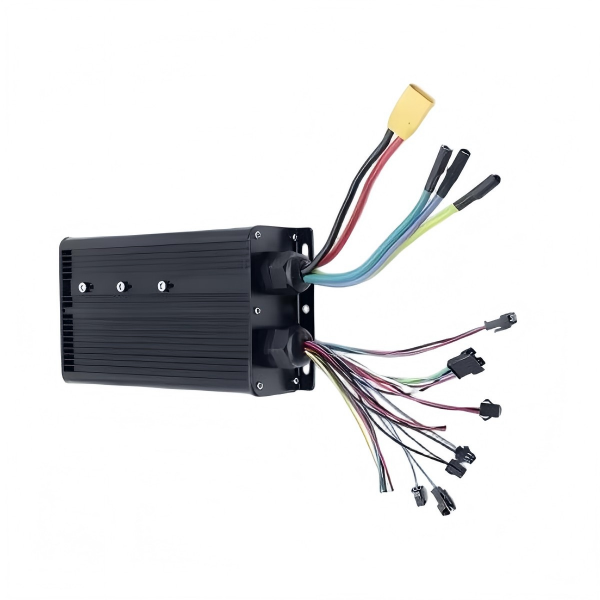

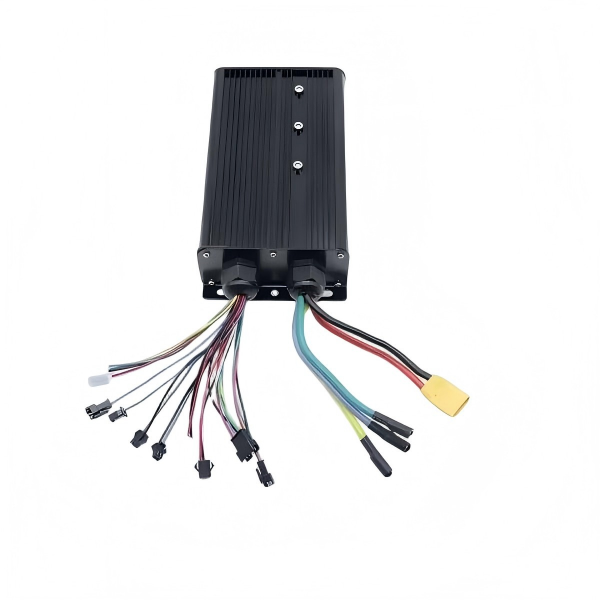

72V 3000W Ebike Brushless Controller

Item

Specification

Remark

Rated Voltage

DC 72V

Wide working range: 60V~84V lithium battery

Continuous Rated Power

3000W

For hub mid drive BLDC motor

Peak Output Power

5000W~6000W

Short-time overload within 30s

Continuous Bus Current

20A~25A

Normal running current

Max Limited Bus Current

50A / 60A / 80A

3 mainstream options for different load

Peak Phase Current

120A~300A

Depends on MOSFET quantity

Low Voltage Protection

60V±1V

Prevent over-discharge of lithium battery

Overvoltage Protection

84V~90V

Protect controller from overcharge damage

Working Temperature

-20℃ ~ +45℃

High-end version up to +60℃

Waterproof Grade

IP54~IP65

Full glue pouring inside aluminum case
