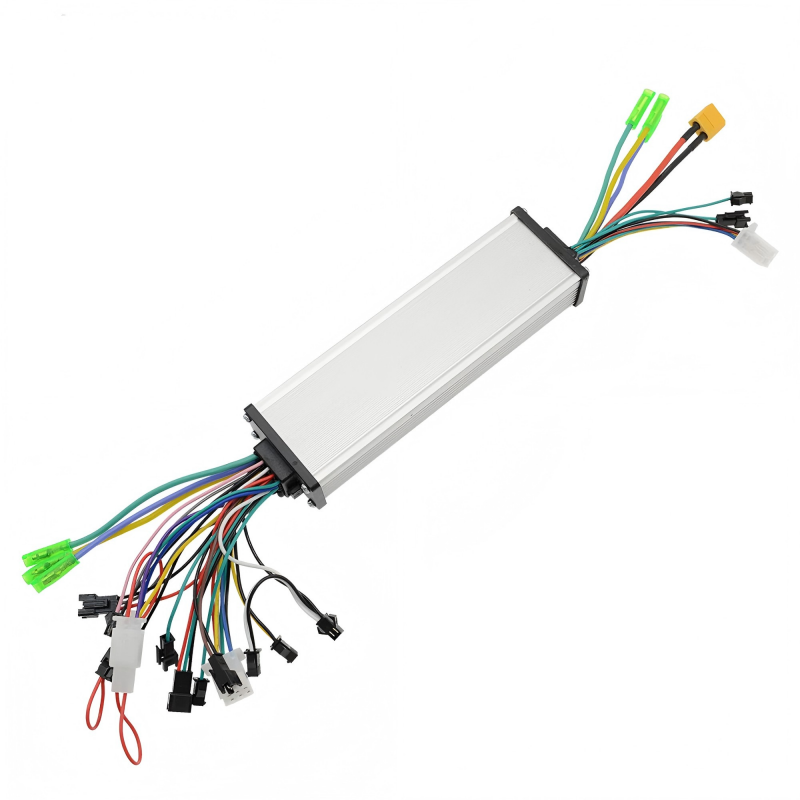

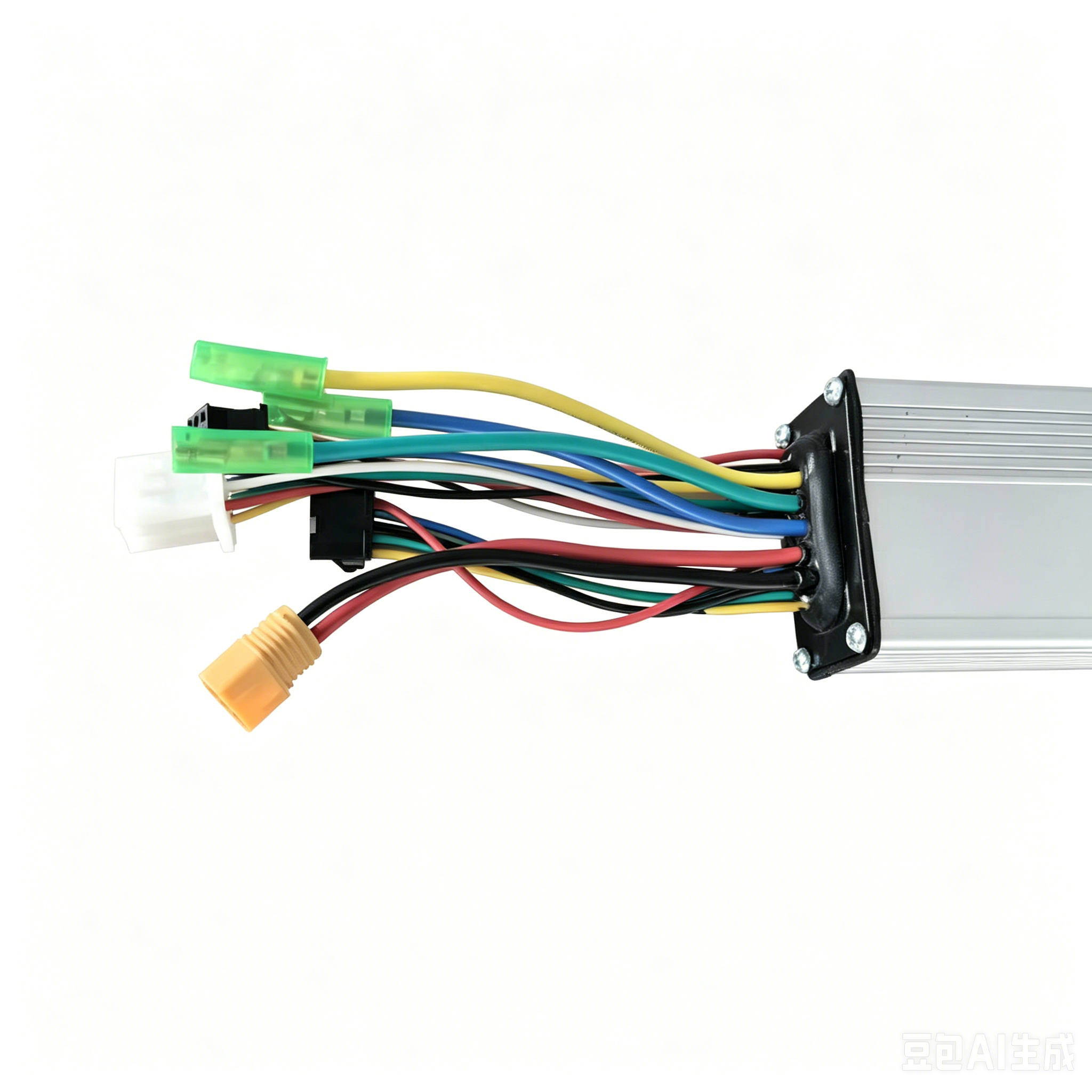

48V 1000W Dual Drive Ebike Brushless Controller

Item

Specification

Remark

Rated Voltage

DC 48V

Compatible with 36V/48V/52V lithium battery

Rated Power (Dual)

1000W (500W×2)

Dual motor synchronous drive

Peak Power (Dual)

1800W–2000W

Short-time overload (10–30s)

Continuous Current (Per Channel)

18A–20A

Single motor output

Max Limited Current (Total)

35A–40A

Dual channels combined

Low Voltage Protection

41V±0.5V

Prevents over-discharge

Overvoltage Protection

54V–58V

Protects against overcharge

Working Temperature

-20℃ ~ +45℃

High-end up to +60℃

Waterproof Grade

IP54–IP65

Aluminum case with full glue pouring
