electric bike parts
electric bike torque arm
- Material :Stainless Steel
- Size:10*12/10*14mm
- Thickness:3mm
- Colour: Silver/ Black
- Description: stainless steel torque arm
|
Material |
304 Stainless Steel / High-carbon Steel |
|
Surface Finish |
Polished / Matte Sandblasted / Black Powder Coating |
|
Arm Thickness |
3mm (Standard); 3.8mm/5mm (Heavy Duty for ≥1000W motor) |
|
Axle Opening Size |
10×12mm / 10×14mm |
|
Total Arm Length |
86mm |
|
Hose Clamp Range |
Φ22~Φ52mm |
|
Single Set Net Weight |
115g~130g (0.12kg) |
|
Applicable Motor Power |
500W~3000W |
|
Mount Position |
Front fork / Rear dropout, Left & Right Side optional |

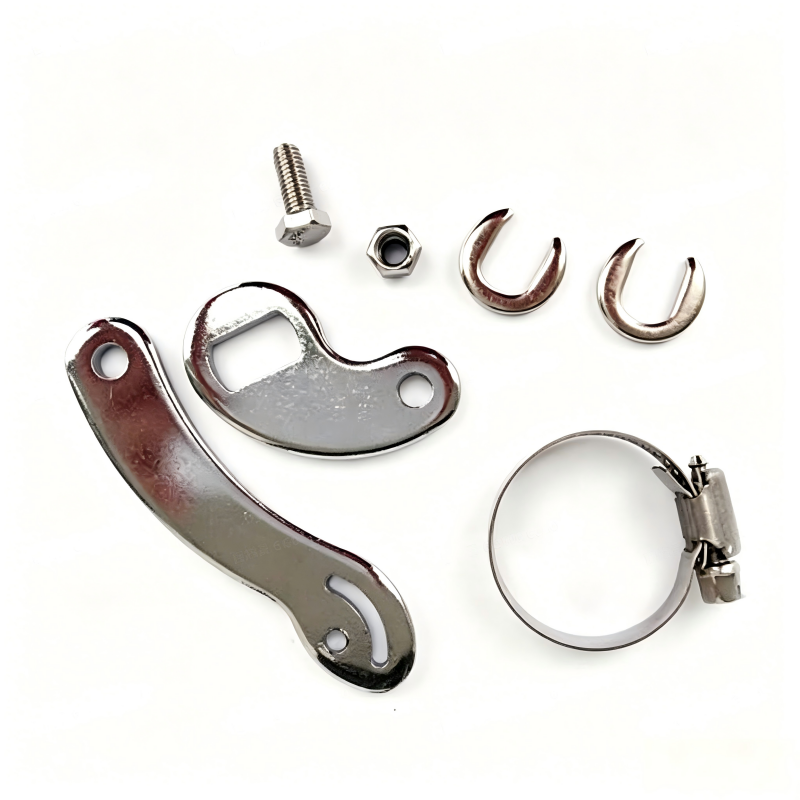

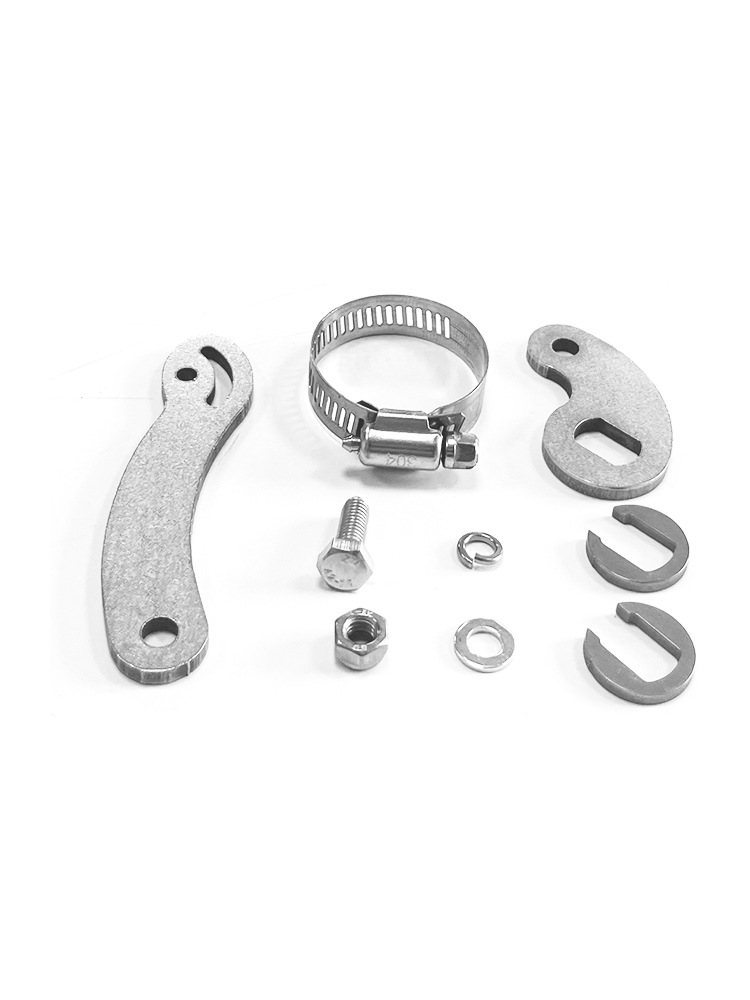

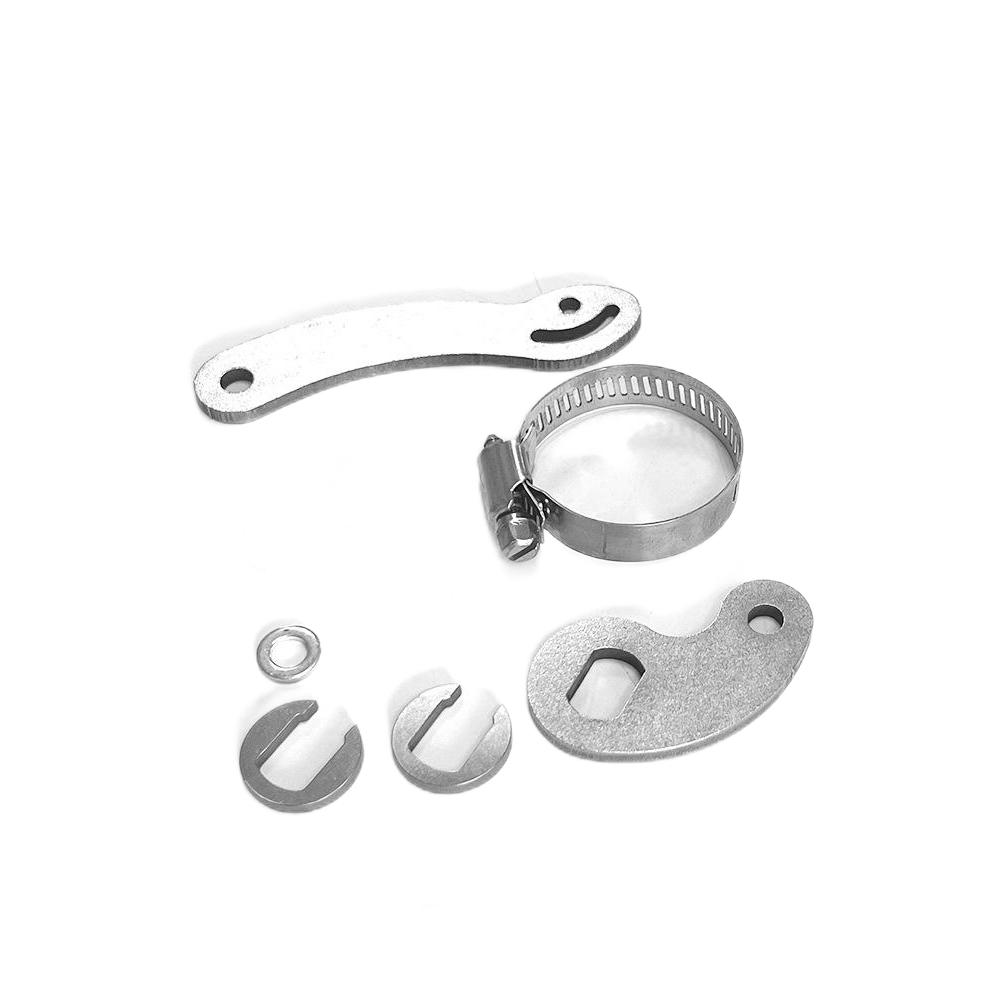

2. Package Accessories (Per Set)
· 1pcs Main Torque Arm Plate
· 1pcs Stainless Steel Hose Clamp
· 1pcs Fixing Bolt + Lock Nut
· 2pcs Spacer Washers (for gap adjustment)
3. Core Functions
Prevent hub motor axle spinning & dropout deformation under motor torque / regenerative braking reverse force
Disperse driving torque to frame, protect fork & dropout from crack or bending
Avoid wheel dislocation during climbing & heavy load riding
4. Compatibility Range
· F Fit most 36V/48V/60V hub motors: 500W/750W/1000W/1500W/3000W
· C compatible with mountain bike, fat tire e-bike, city ebike, e-trike conversion kit
Works for steel frame, aluminum frame & carbon fiber frame ebikes
