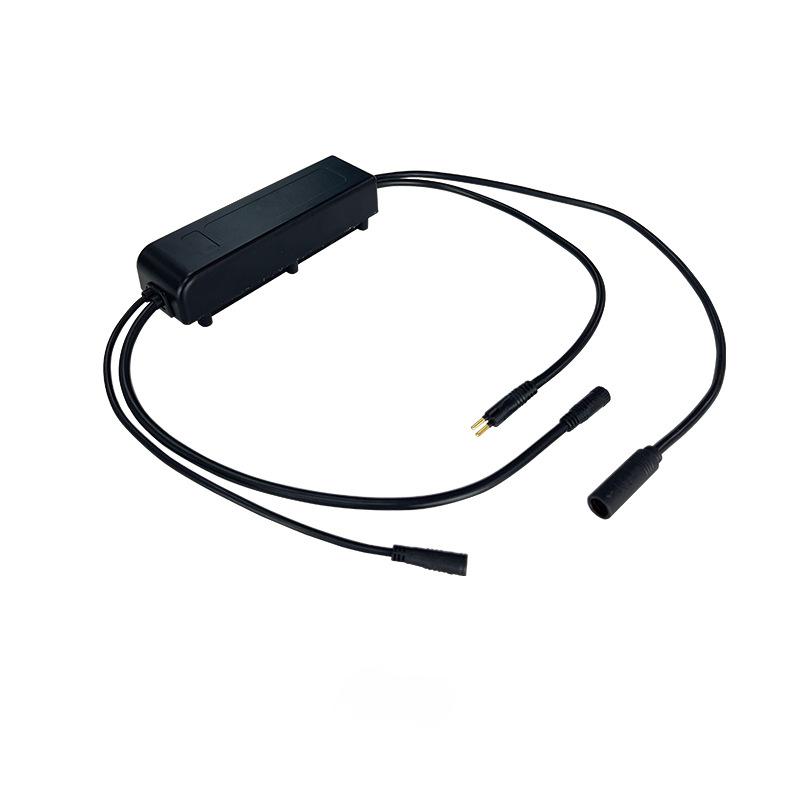

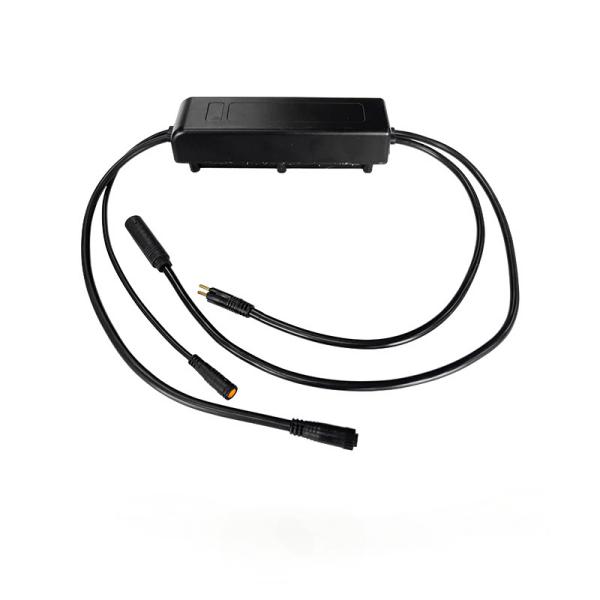

48V 1000W Waterproof Ebike Brushless Controller
- Voltage:48V
- Power:48V
- Mosfet:12Mosfet
- Waterproof
- Description: waterproof ebike controller
48V 1000W Waterproof Ebike Brushless Controller
|
Item |
Specification |
|
Rated Voltage |
DC 48V |
|
Rated Power |
1000W |
|
Peak Power |
1800W–2000W |
|
MOSFET |
12MOS (standard) |
|
Housing |
Full aluminum alloy, grooved heat dissipation |
|
Continuous Current |
22A–25A |
|
Max Limited Current |
30A–40A |
|
Low Voltage Protection |
40V±0.5V |
|
Overvoltage Protection |
54V–58V |
|
Working Temperature |
-20℃ ~ +45℃ |
|
Waterproof Grade |
IP65 |
|
Battery Connector |
XT60 / XT90 / Anderson |
|
Motor Phase Wire |
3×12AWG high-current cables |
Control Modes:
Hall sensor & sensorless self-learning (auto-match motor phase)
Sine wave drive (low noise, high efficiency)
Riding Features:
Speed limit: 10–60 km/h programmable
Cruise control & reverse gear
9-level PAS pedal assist
E-ABS regenerative braking (energy recycling)
Protection System:
Under-voltage, over-voltage, over-current, short-circuit, locked-rotor, over-heat, anti-runaway protection.
Communication:
Compatible with LCD: SW900, S866,T8,X1 etc
